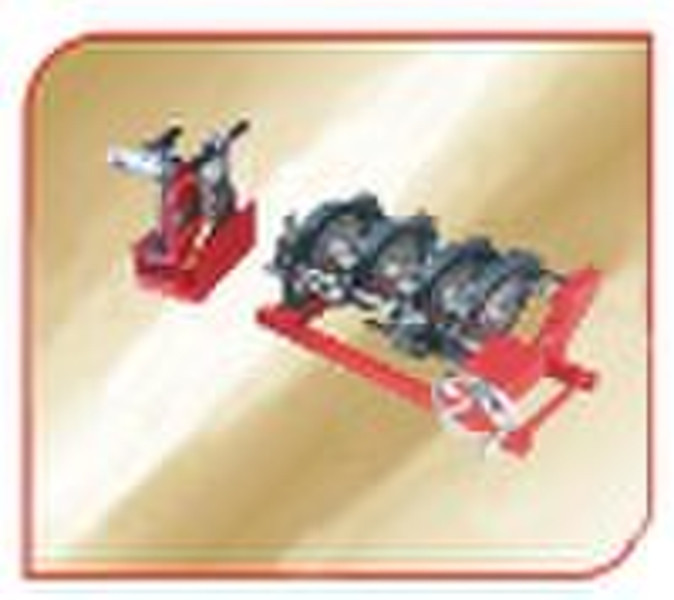

pe pipe butt welding machine

DH-200 hand-operated fourclamp ringbutt fusion welding machine 1)Suitable for the butt fusion welding of plastic pipes(PE, PP etc) in size DN63-200mm; 2)It consists of operation platform, clamping device, heating plate and milling cutter. 3)The clamping device is separated from the operation system to facillitate laying operation 4)The clamping device adopts double clamping structure to precisely position pipes and adjust margins. 5)The clamping devices are detachable, make the welding easy and high efficiency. 6)Use solenoid valve to control the movement of oil cylinder, it let the operation easier and more reliable. Basic technical parameters: 1)Apply for pipe specifications:63mm,75mm,90mm,110mm,125mm,140mm,160mm,200mm. 2)Butt welding deviation: ≤0.3 mm 3)Temperature diviation: ±3°C 4)Total power: 3.5KW/220V 5)Working temperature: 220°C 6)Ambient temperature: -15-+40°C 7)Required time to achieve the welding temperature: less than 20min 8)Apply to weld material: PE, PP, PB, PVDF
